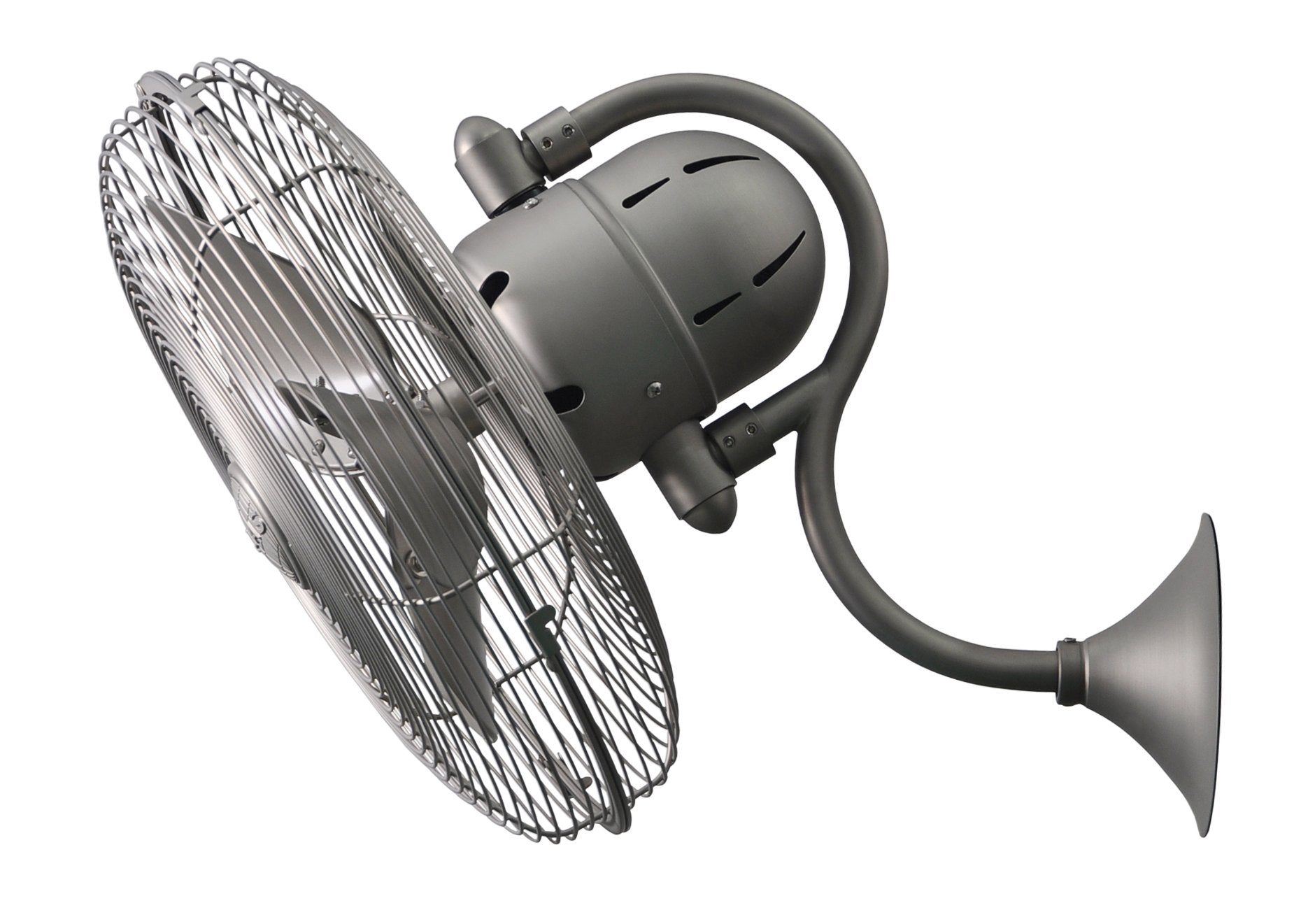

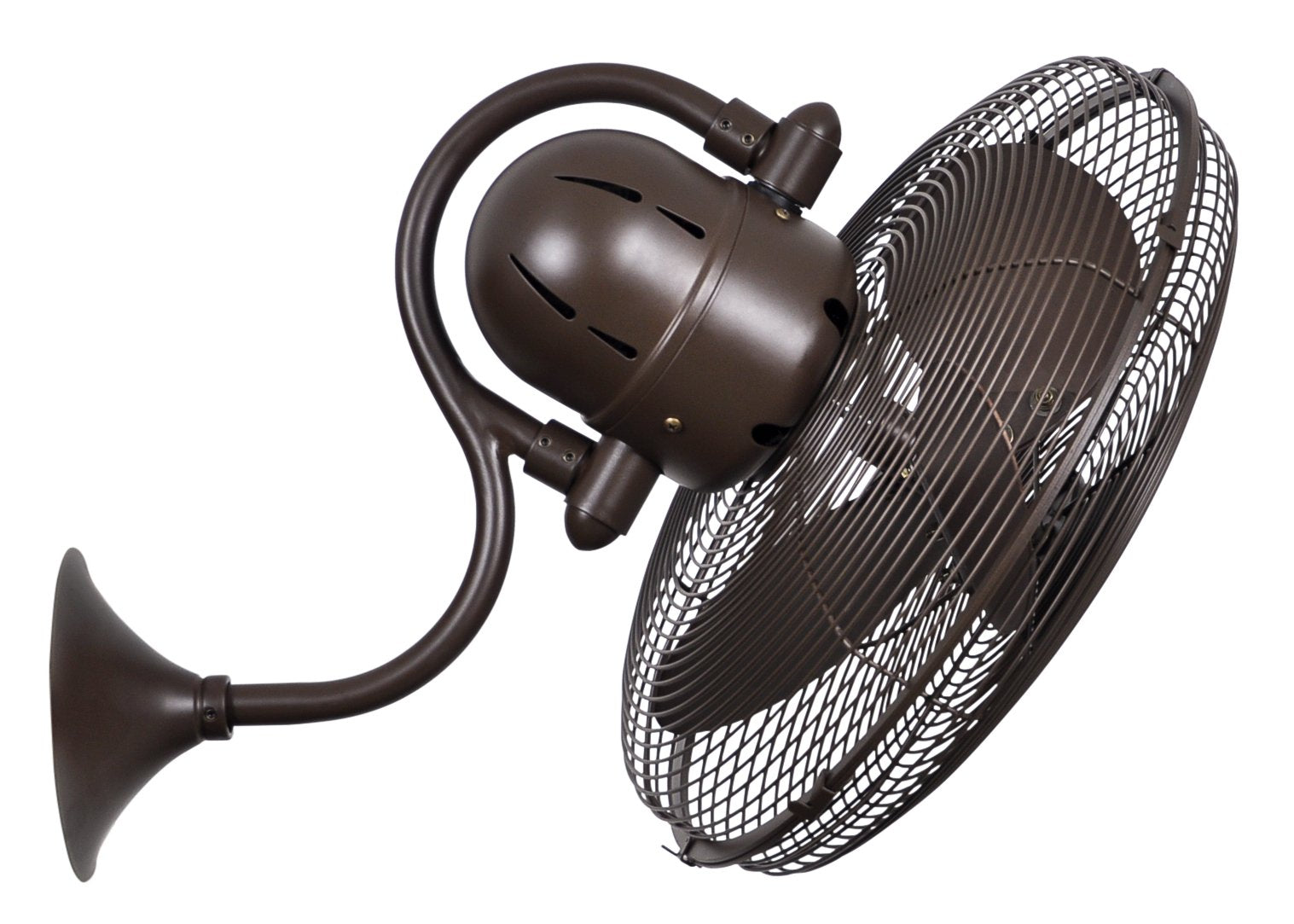

Laura Wall Fan
Matthews Fan Company
Regular price
€486.00
From the Atlas Fan Collection by Matthews Fan Company.
The Laura 3-speed, left-to-right 90 degree oscillating wall fan offers the best in form and function. Its patented design boasts a whisper-quiet DC motor, remote control operation and easy 2-wire installation.
Compact and powerful, Laura can be mounted in small, awkward spaces or in front of HVAC ducts to improve the efficiency of heating, ventilation or air conditioning. Constructed of cast aluminum and heavy stamped steel,
Laura carries a limited lifetime warranty.
- Available in the following finishes: polished chrome, brushed nickel or textured bronze.
- Constructed of cast aluminum and heavy stamped steel.
- Limited Lifetime Warranty
- Equipped with hand-balanced metal blades and metal safety cages.
- 3-speed wall control and side-mounted wall junction box are included.
- A three-wire system is needed to operate the oscillation mechanism independent of the fan blades.
845-531-5205
Specs
| Brand: | Atlas |
| Style: | Contemporary, Transitional |
| Collection Name: | Laura |
| Blade Pitch: | 31 Degrees |
| Width/Dia.: | 16" |
| Height: | 14.5" |
| Extension From Wall | 19.5" |
| Weight: | 12 lb |
| Max. Mounting Height: | Approximately 24" from ceiling |
| Location Rating: | Interior/Exterior Damp (for covered outdoor location) |
| IP Rating: | IP20 |
| CFM: | 1600 |
| RPM: | 1520 |
| Watts: | 28.1 |
| CFM/Watts | 56.94 |
| Amps: | 0.5 |
| Motor Speeds: | 3-Speed |
| Motor Type | DC |

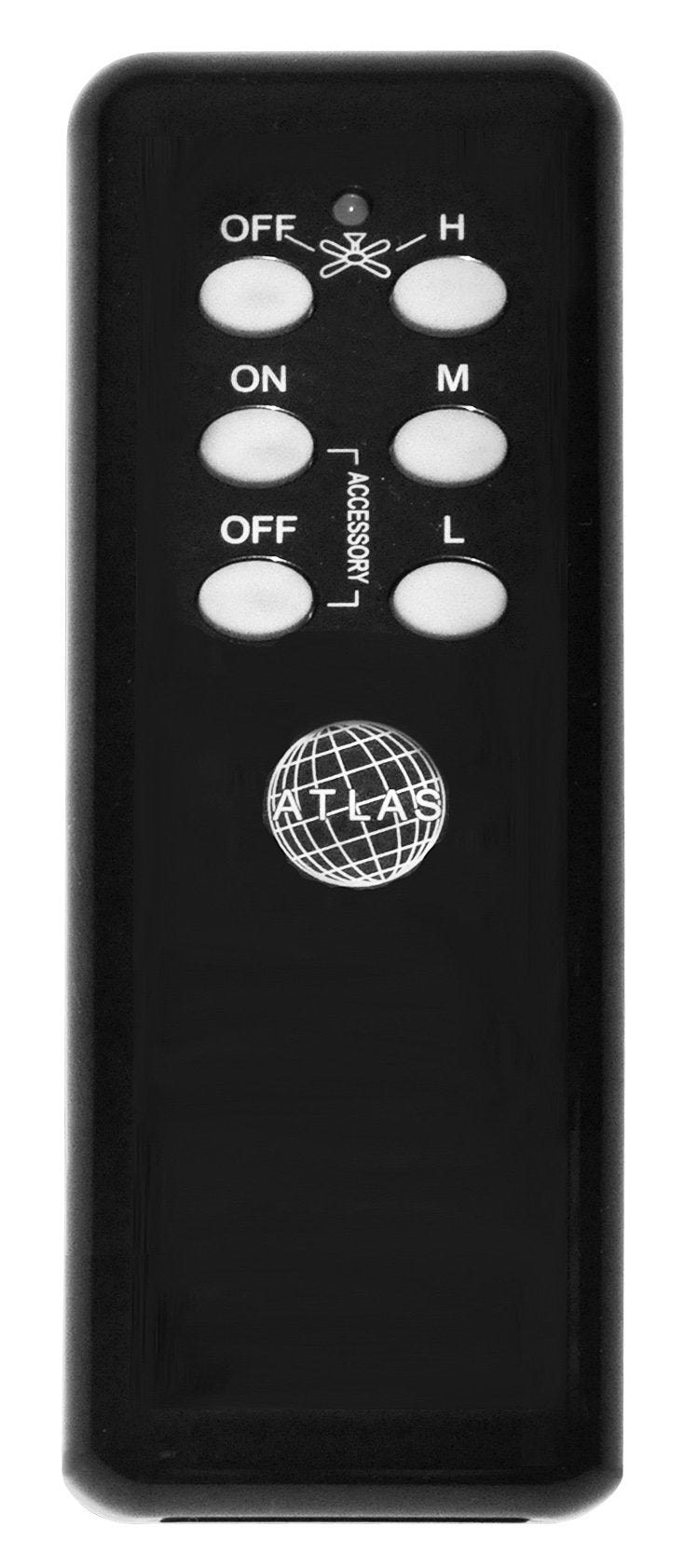

| Control Type: | Remote Control |
| 120 V Safety Rating: | UL / CUL |
| Warranty: | Limited Lifetime |
Diagram
