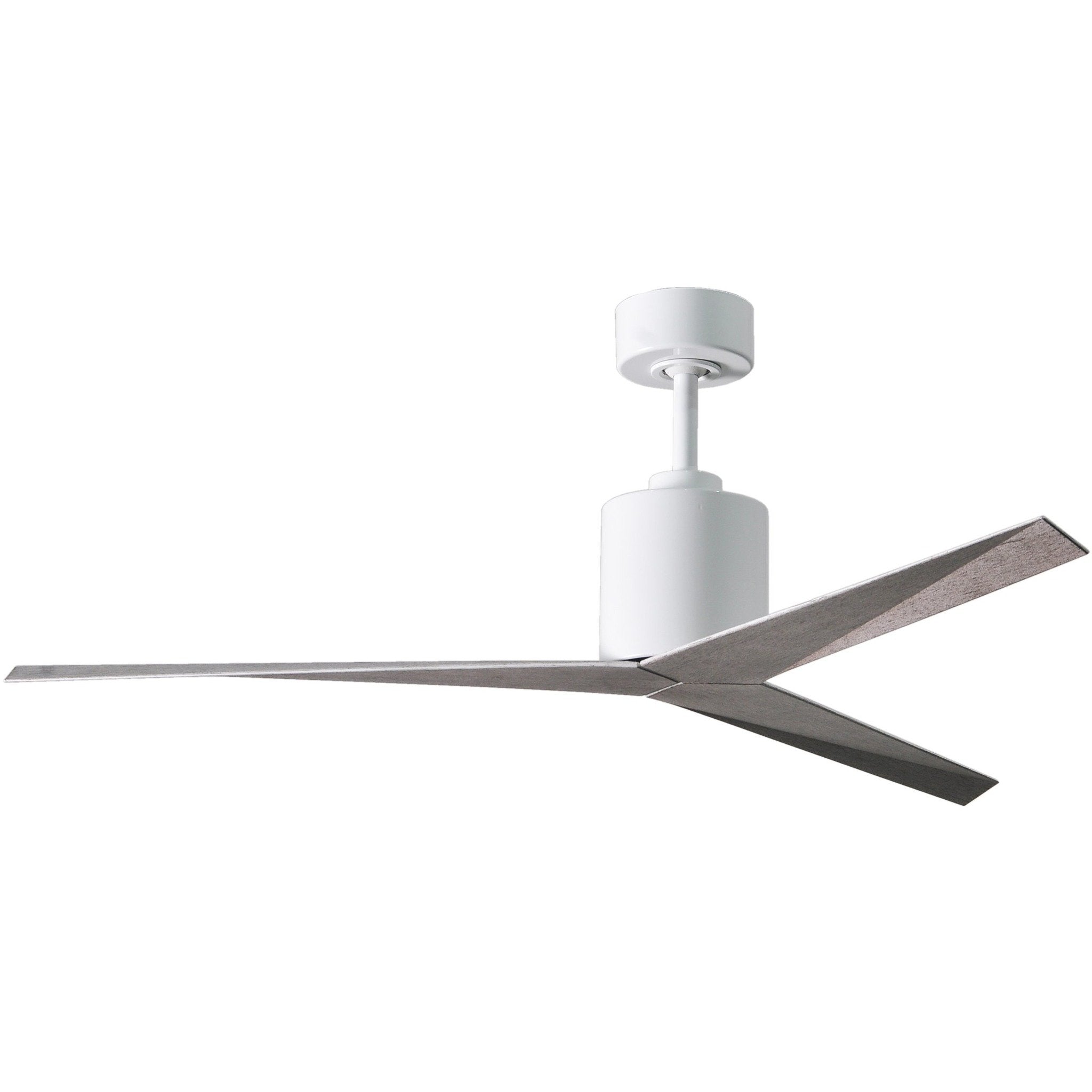

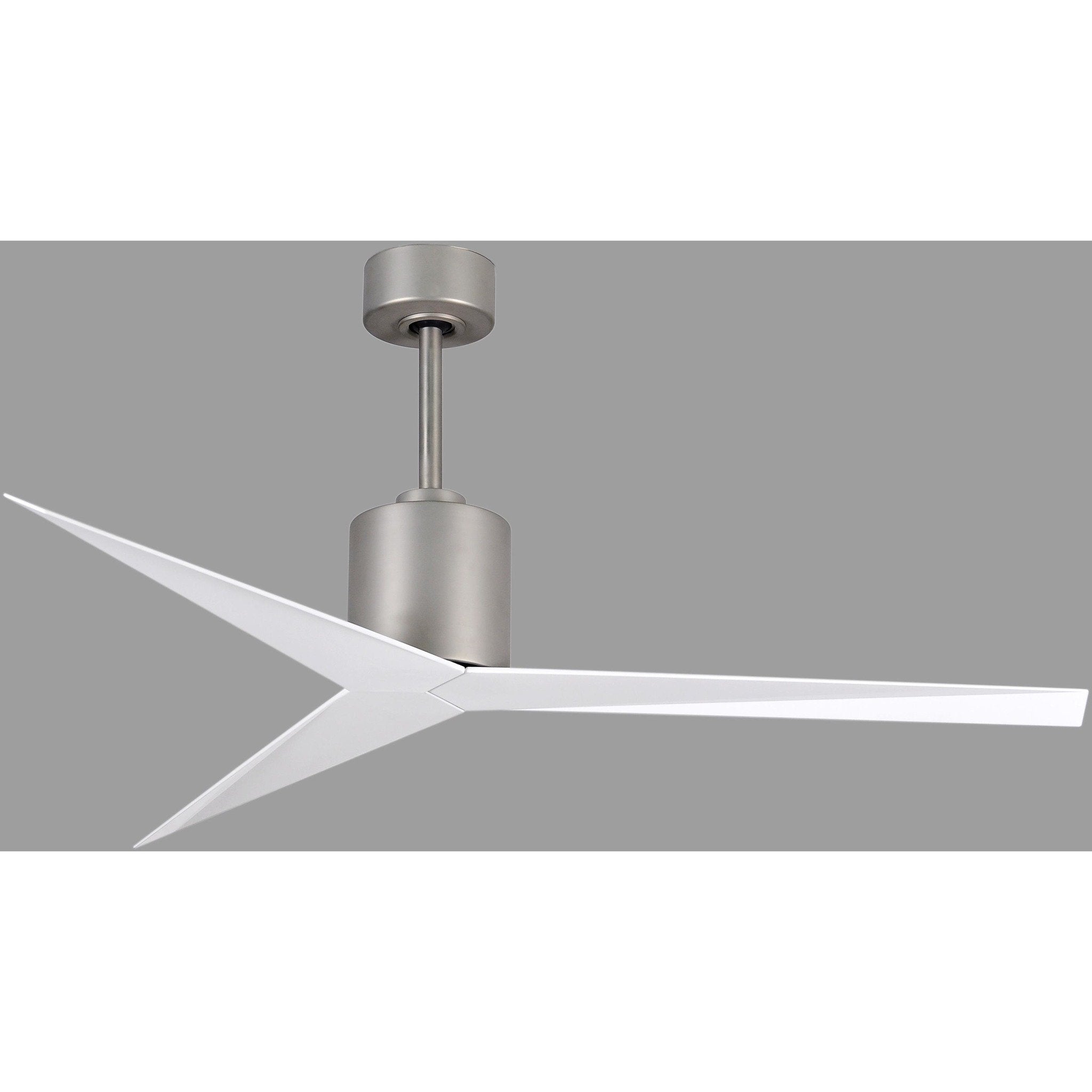

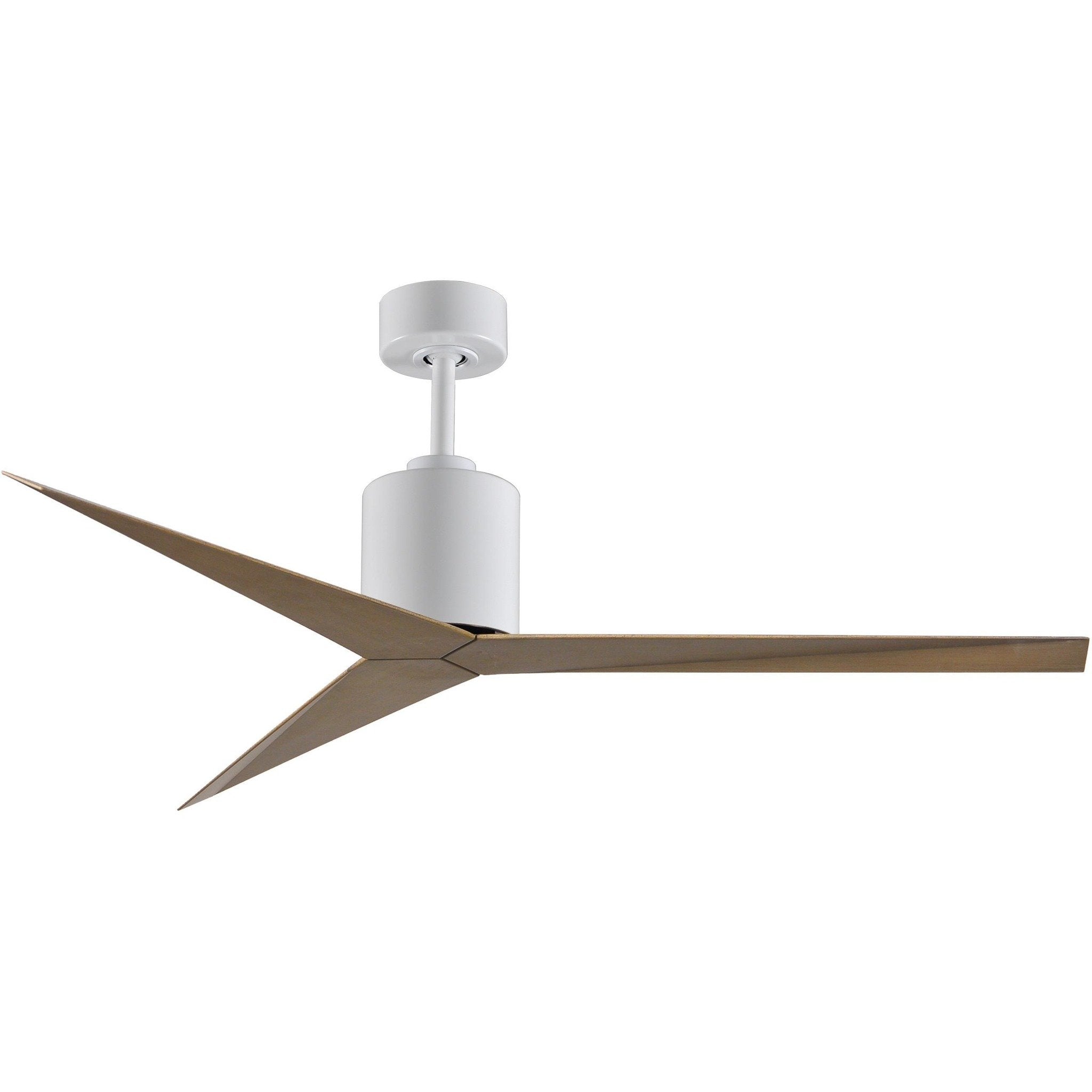

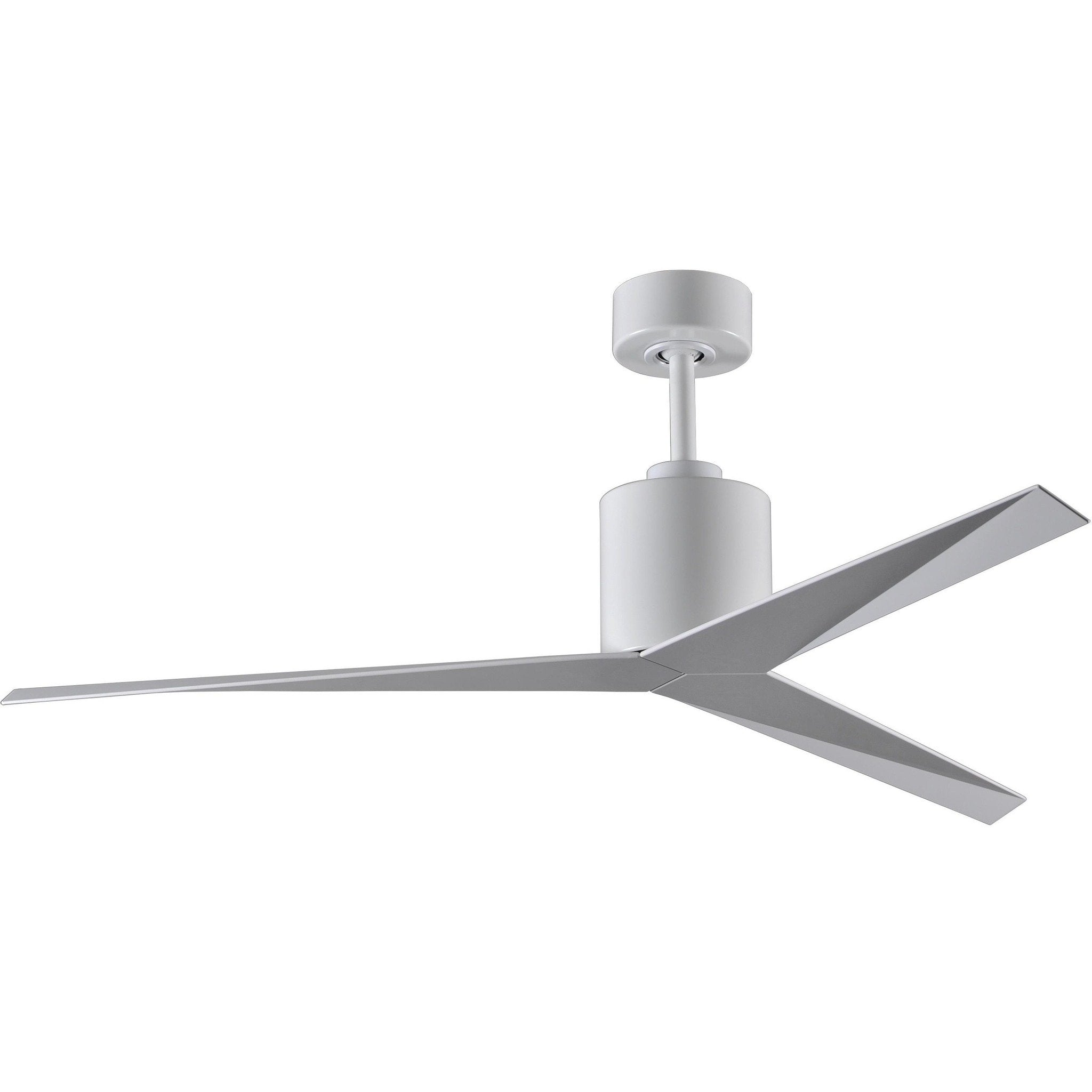

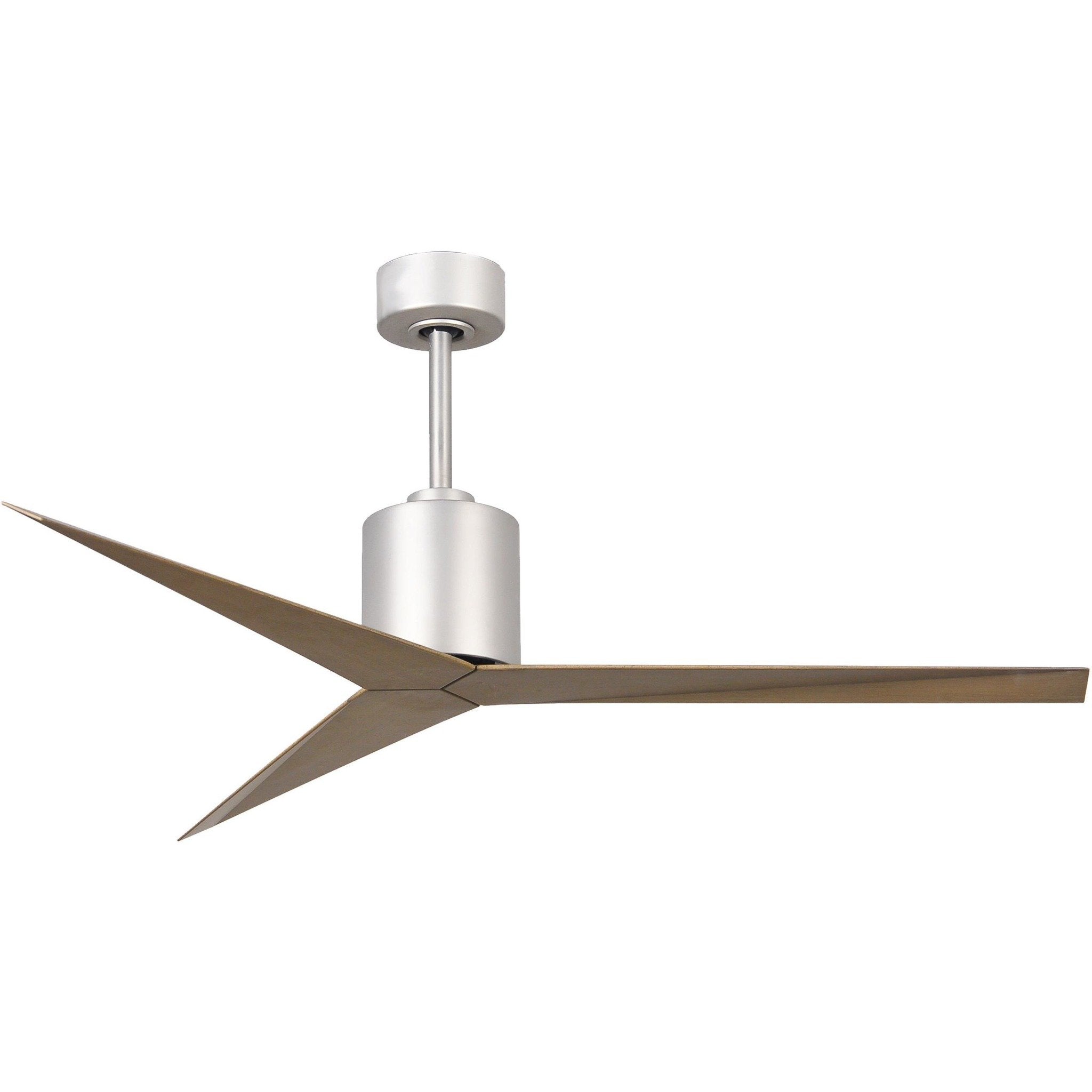

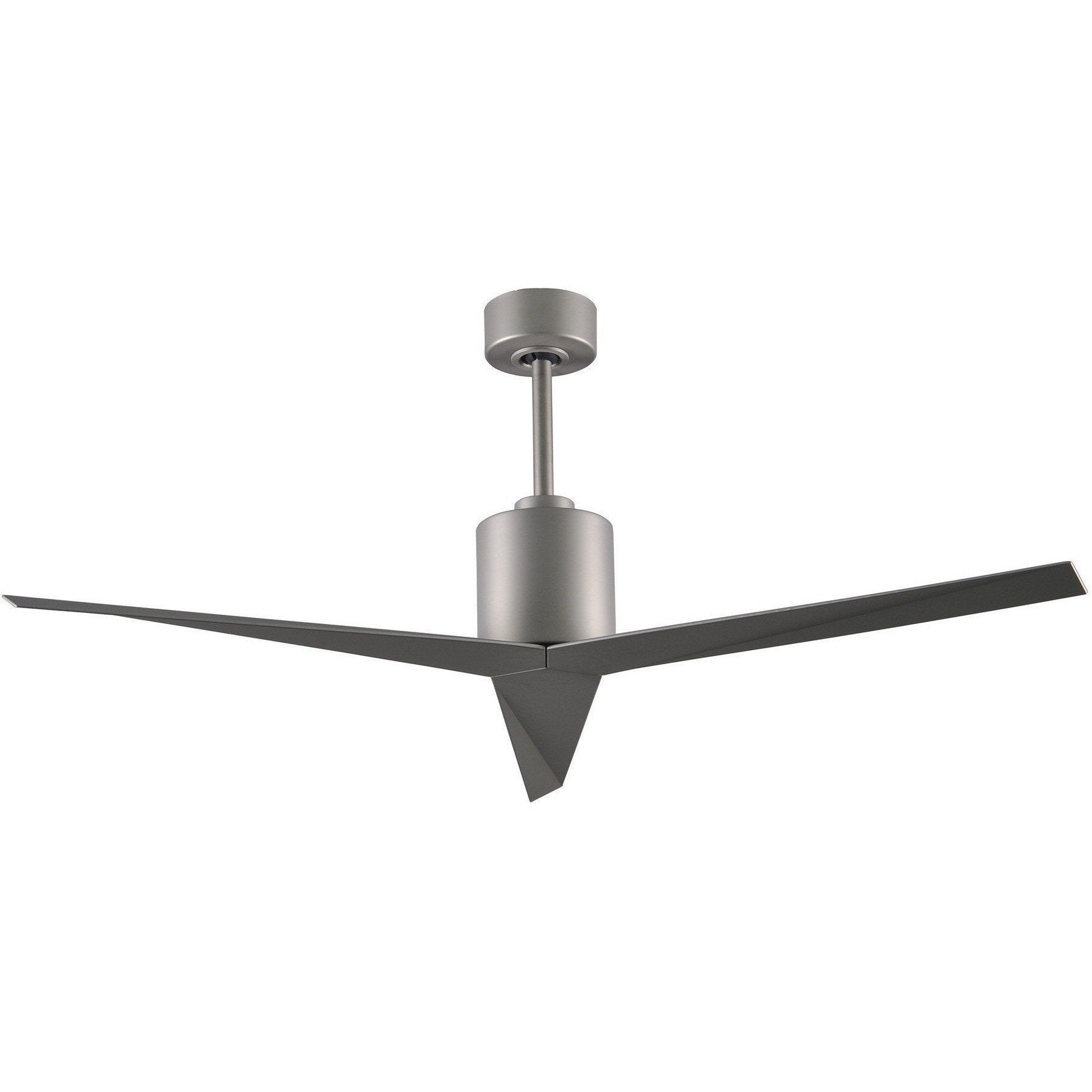

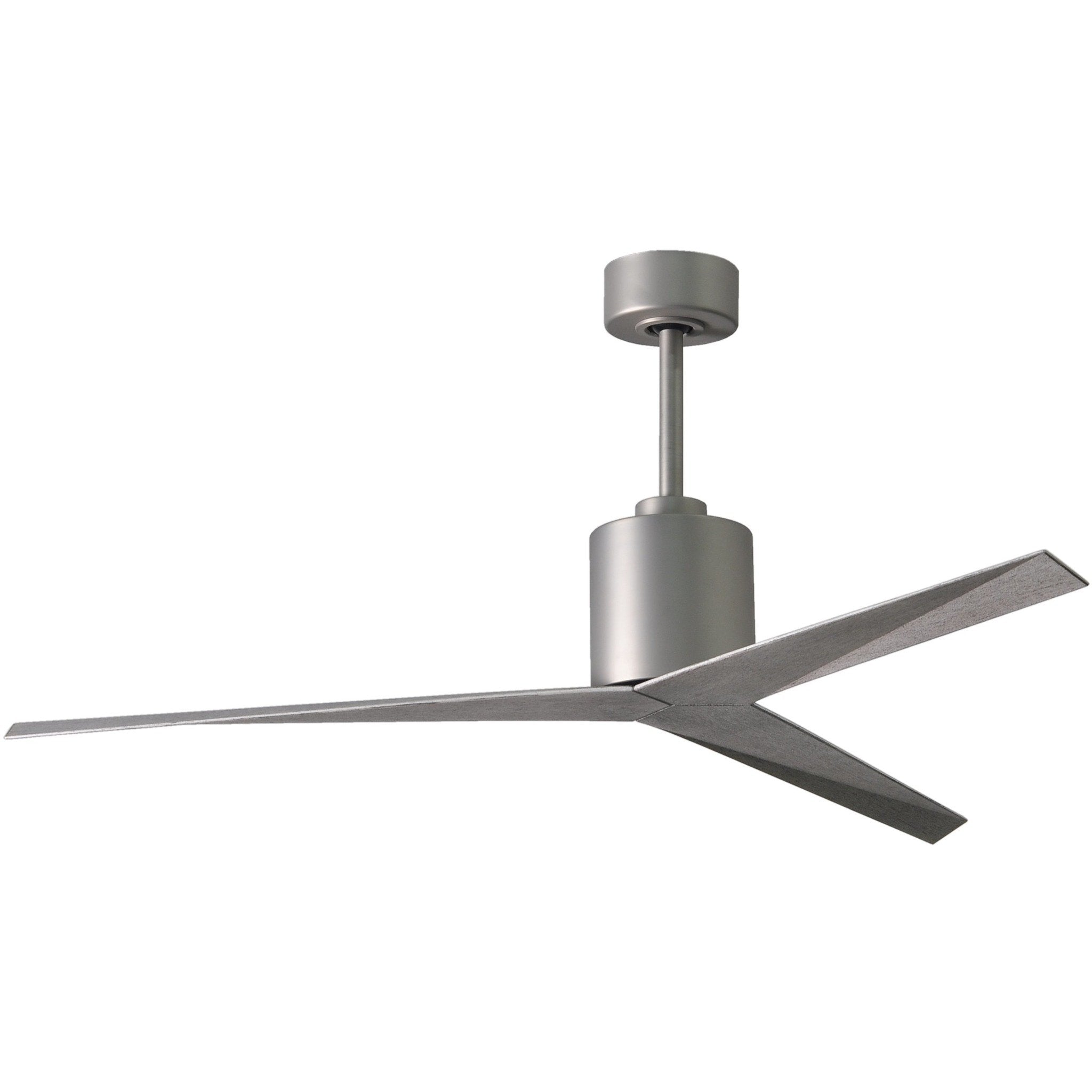

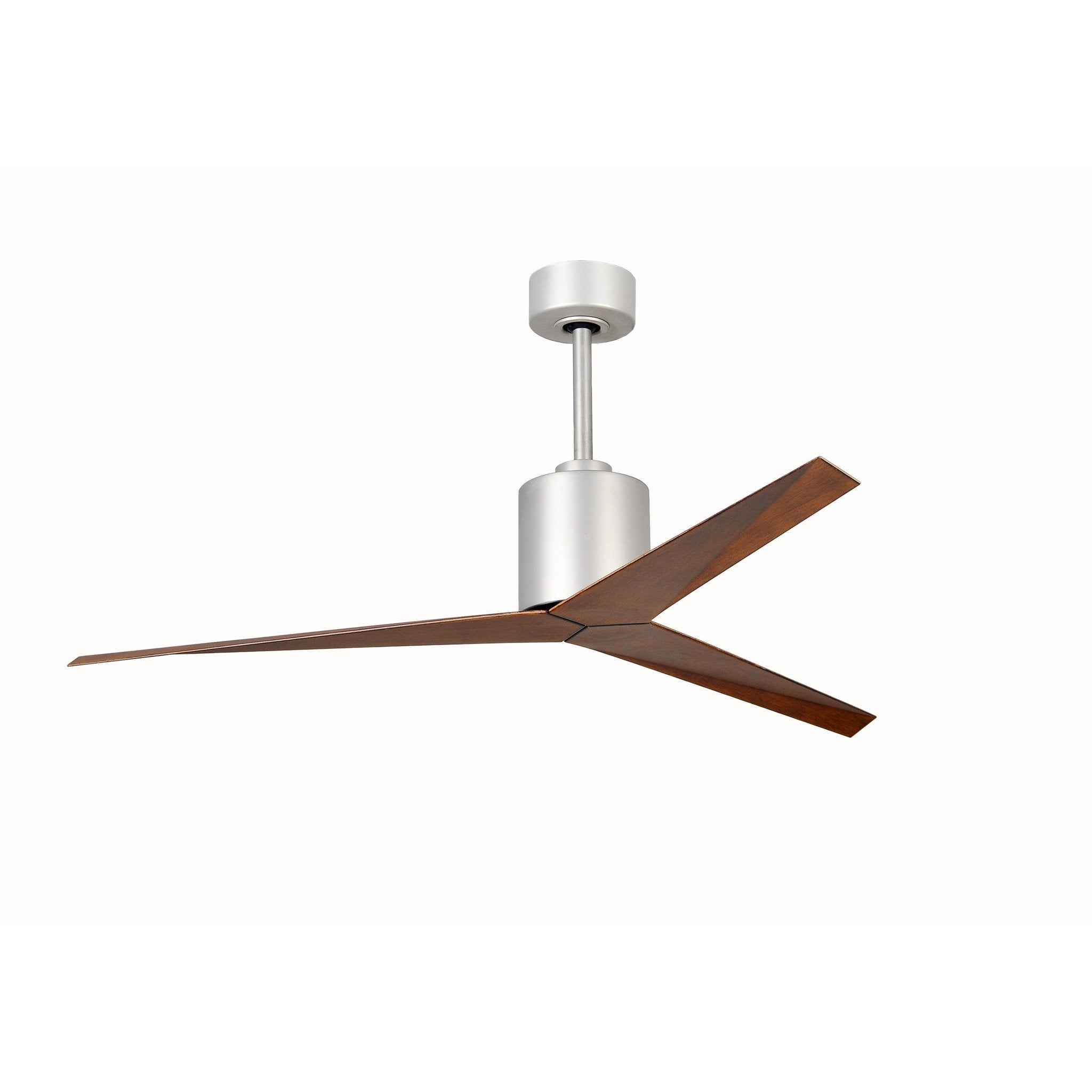

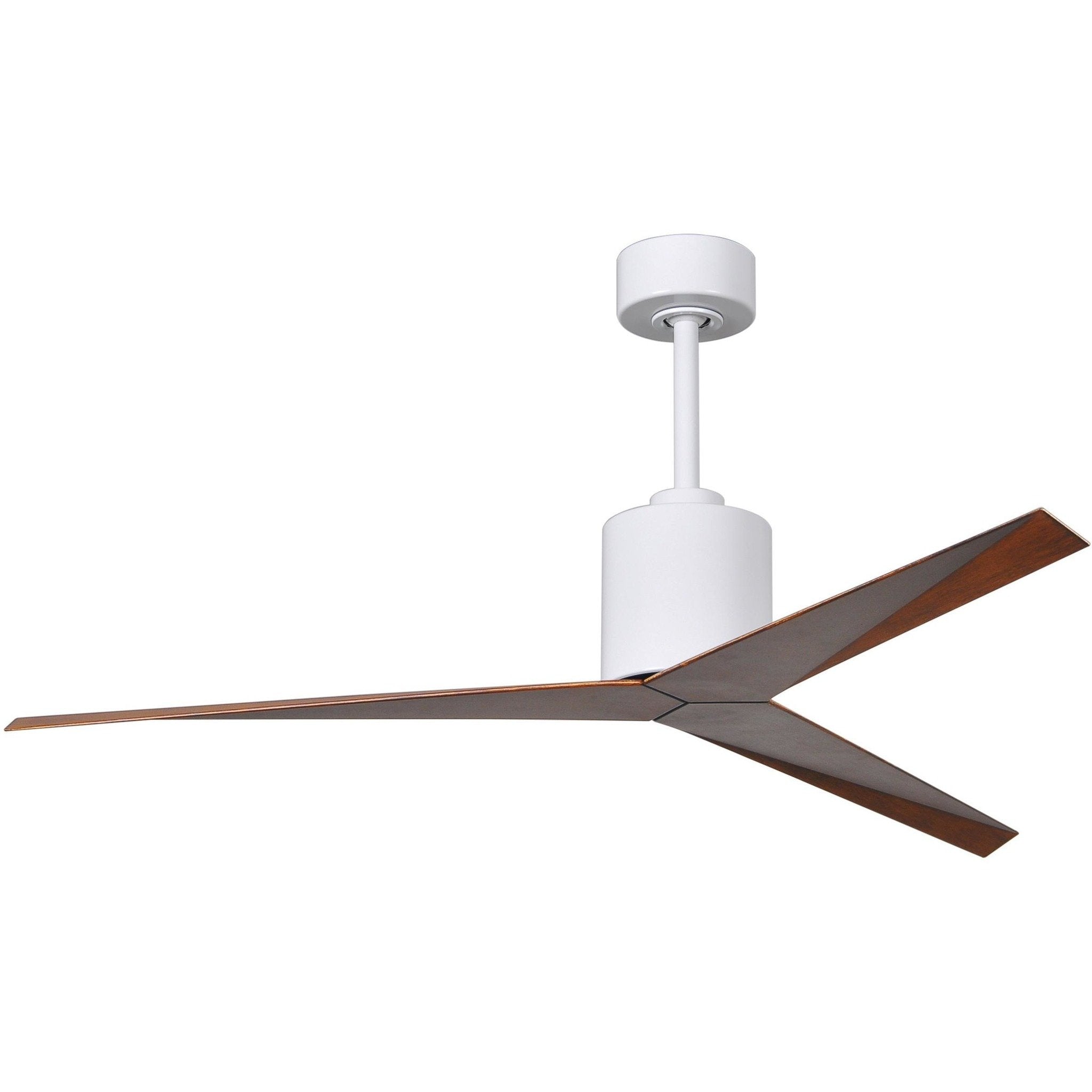

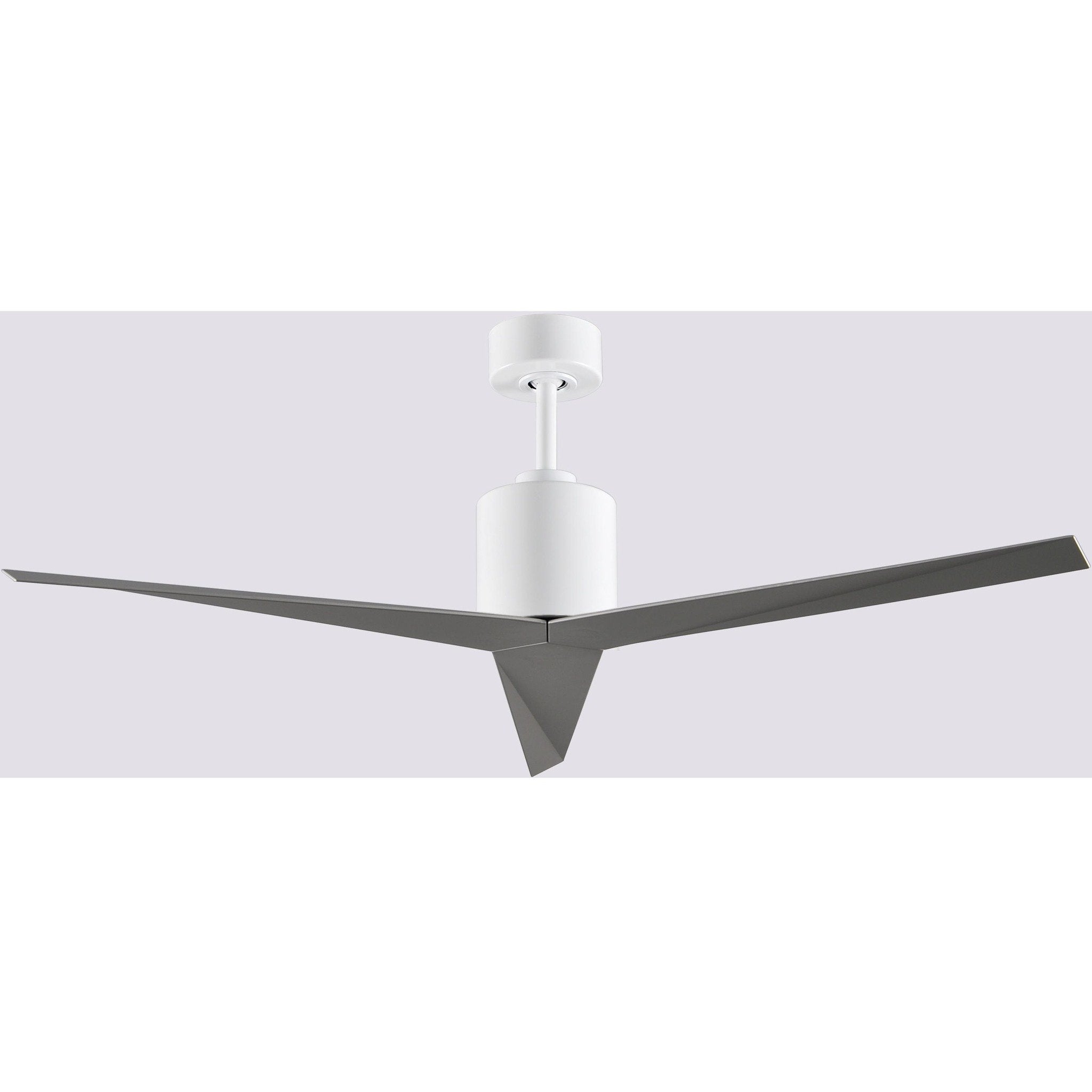

Eliza Paddle Fan
Matthews Fan Company
Regular price
€571.50
From the Atlas Fan Collection by Matthews Fan Company.
One of Matthew's best selling fans, the elegant Eliza'strikes an impressive figure with it's clean, modern lines and beautiful finishes. Designed by Chicago architect Stephen Katz in 2013, the Eliza combines superb functionality with contemporary beauty. The unique blade shape is designed to maximize air movement at the outer edge of the blade, resulting in more efficient air velocity rings, less blade drag and greater motor optimization. Equally important is the Eliza fan's stationary visual statement which combines modern utility with minimalist geometry.
Features:
- Energy efficient, ultra-quiet, six-speed and reversible DC motor with new reliable technology.
- Can be operated on reverse for heating purposes in cold weather.
- Damp location finishes: brushed nickel and gloss white.
- Blades available in Gloss White, Brushed Nickel, Walnut or Gray Ash.
- Constructed of cast aluminum, polycarbonate and heavy stamped steel.
- Limited Lifetime Warranty
- Included is a 6-speed hand-held and wall-mountable remote control
- One downrod of 10". 5", 20", 30", 48" or 72" downrods also available.
- Vaulted ceiling mount canopy for up to 30 degrees.
Questions? Call us at
845-531-5205
Specs
| Brand: | Atlas |
| Style: | Contemporary, Transitional |
| Collection Name: | Eliza |
| Blade Pitch: | 27 Degrees |
| Width/Dia.: | 56" |
| Height: | 12" Plus Downrod |
| Downrod Included | 10" |
| Available Rod Lengths: | 5", 10", 20", 30", 48", 72" |
| Location Rating: | Interior/Exterior Damp (for covered outdoor location) |
| IP Rating: | IP20 |
| CFM: | 5395.95 |
| Watts: | 32.4 |
| CFM/Watts | 166.54 |
| Amps: | 0.5 |
| Motor Speeds: | 6 Speed |
| Motor Type | DC |
| Control Type: | Remote Control with Reverse |
| 120 V Safety Rating | UL, CUL |
| Warranty: | Limited Lifetime |
| Origin | China |
