Diane Ceiling Fan
Matthews Fan Company
Regular price
€387.00
From the Atlas Fan Collection by Matthews Fan Company.
The Diane forward and reverse sweeping oscillating, directional fan head provides maximum, forward and reverse airflow. The Diane can be hung in small, awkward spaces or in front of HVAC ducts to make more efficient the heating, ventilation or air conditioning of any space.
The Diane is available with the following blade options:

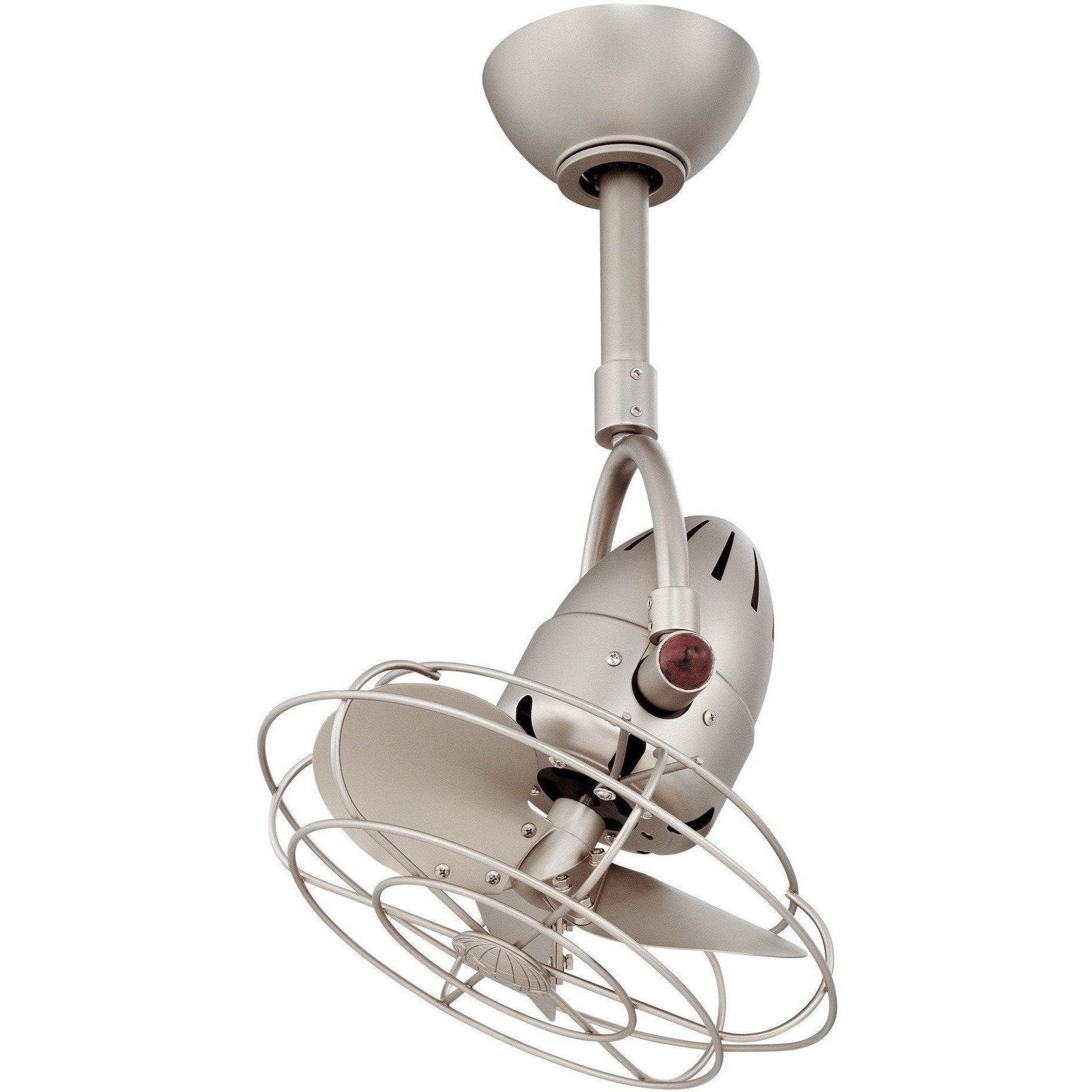

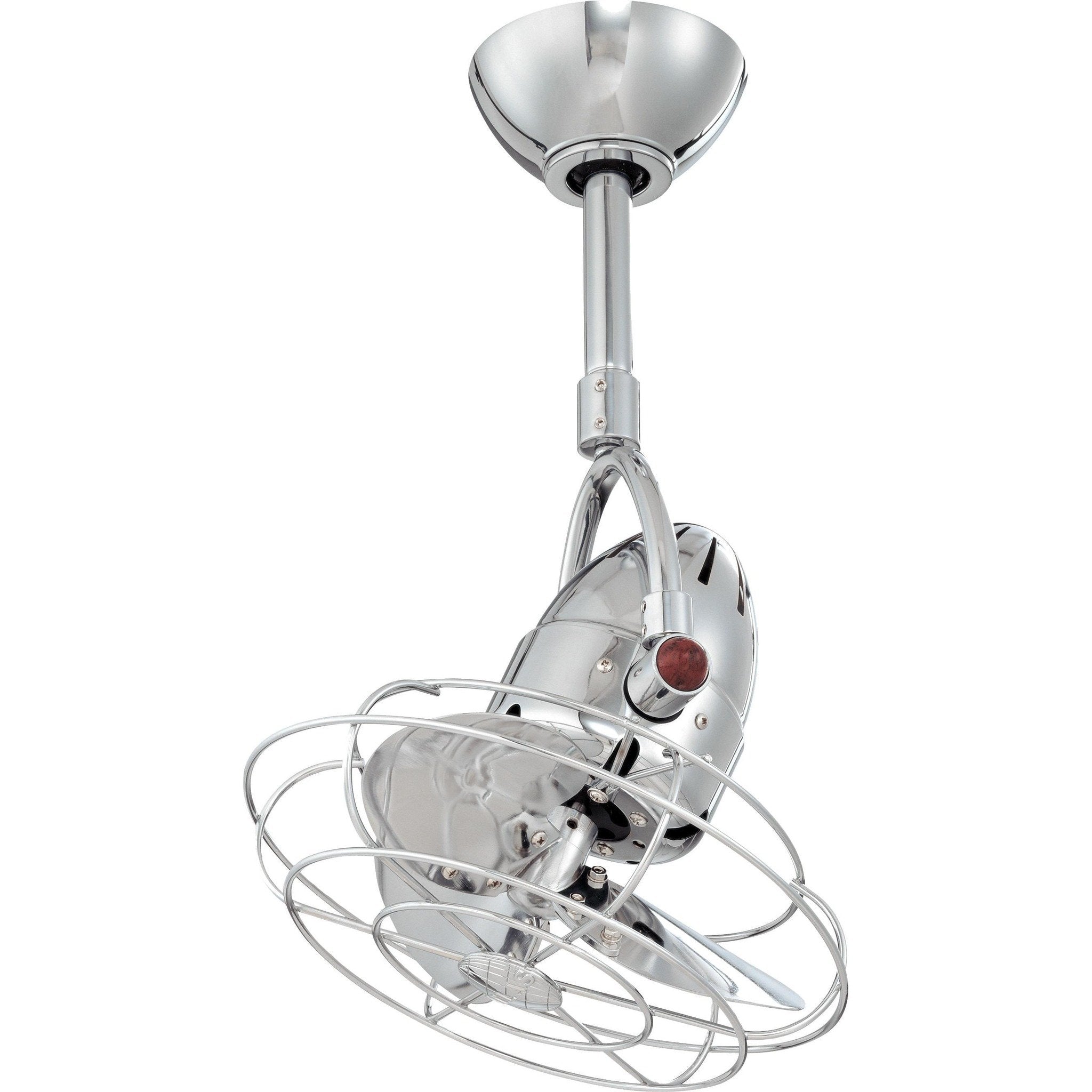

- Hand-balanced metal fan head with decorative metal blade guards
- Hand-balanced metal fan head with metal safety cages for low ceiling applications

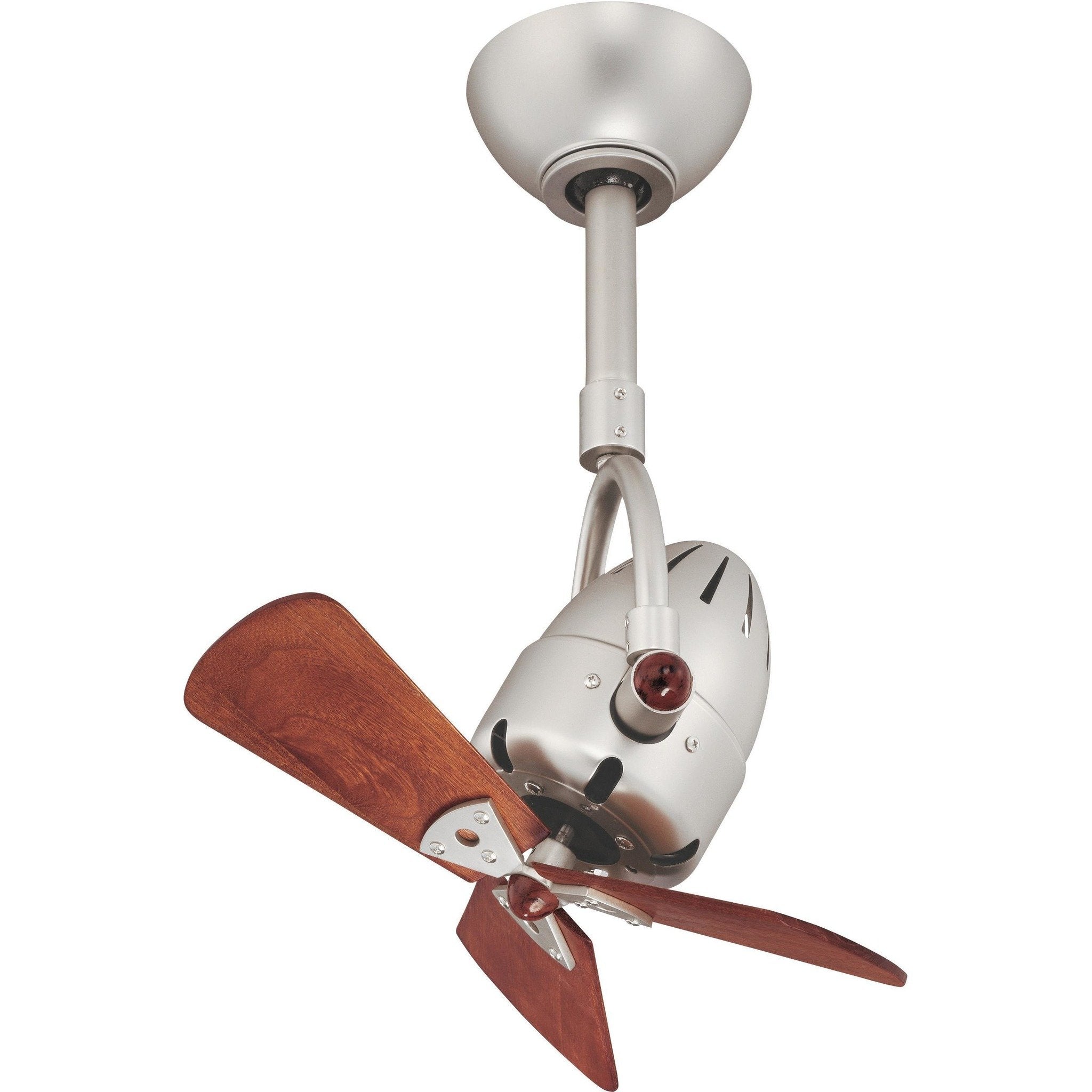

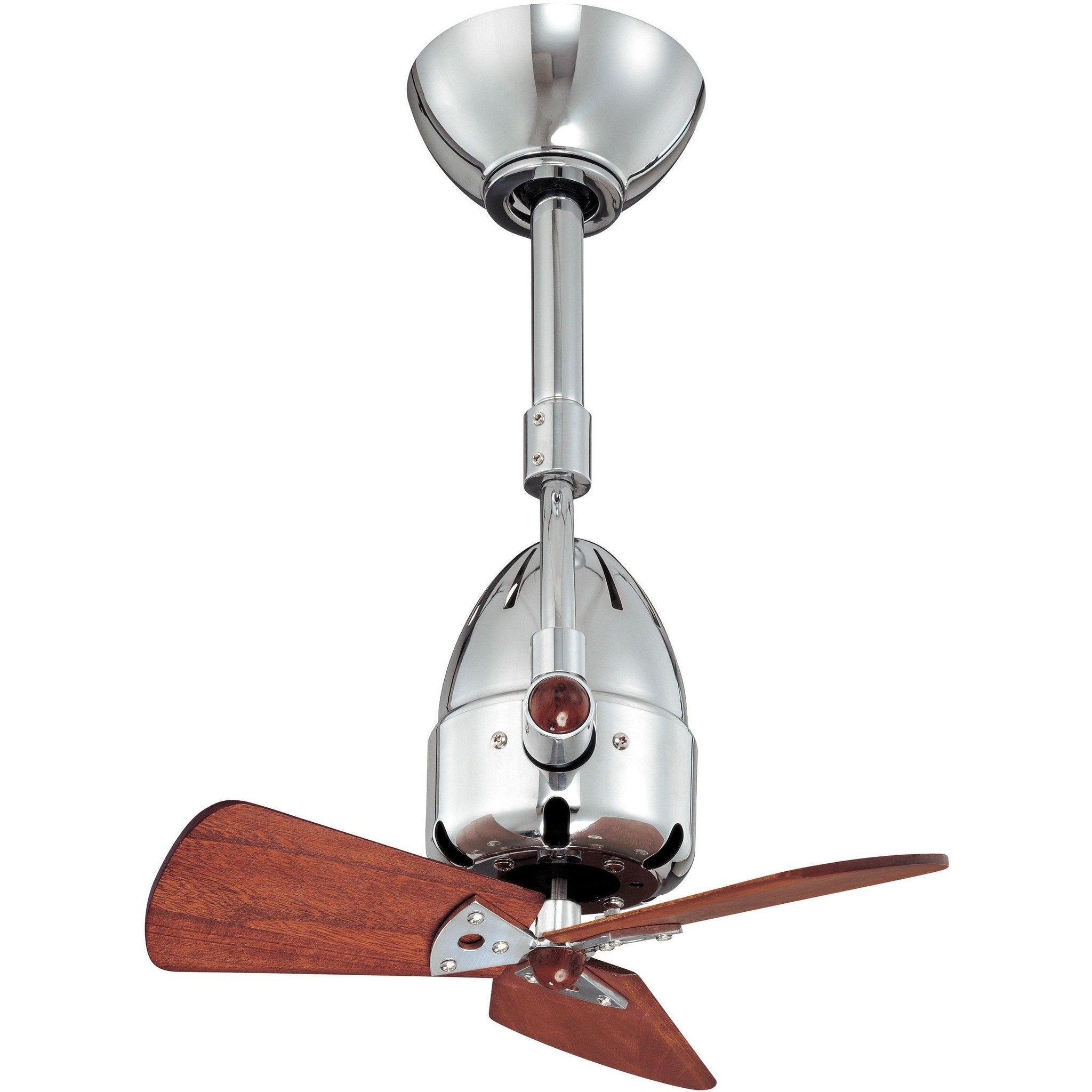

- Hand-balanced solid wood fan head without blade guards
Features:
- One downrod of 10". 5", 20", 30", 48" or 72" downrods also available.
- Hand-held and wall-mountable 3-speed remote control.
- Vaulted ceiling canopy for up to 29 degrees.
- Available in the following finishes: polished chrome, brushed nickel or textured bronze.
- Constructed of cast aluminum and heavy stamped steel.
845-531-5205
Specs
16" Single Oscillating Directional Ceiling Fan with damp location protective coating on all finishes.
| Brand: | Atlas |
| Style: | Contemporary, Transitional |
| Collection Name: | Diane |
| Blade Pitch: | Metal Blades: 31 Degrees, Wood Blades: 19 Degrees |
| Width/Dia.: | Metal Blades: 13", Wood Blades: 16" |
| Hight: | Metal Blades: 14" Plus Downrod, Wood Blades: 12" Plus Downrod |
| Downrod Included | 10" |
| Available Rod Lengths: | 5", 10", 20", 30", 48", 72" |
| Location Rating: | Interior/Exterior Damp (for covered outdoor location) |
| IP Rating: | IP20 |
| CFM: | Metal Blades: 1423.92, Wood Blades: 1608.49 |
| Watts: | Metal Blades: 47, Wood Blades: 52 |
| CFM/Watts | Metal Blades: 30.03, Wood Blades: 30.93 |
| Amps: | 0.5 |
| Motor Speeds: | 3-Speed |
| Motor Type | AC |
| Control Type: | Remote Control |
| 120 V Safety Rating | ETL, CETL |
| Warranty: | Limited Lifetime |
| Origin | China |
Diagram
